Temperature control plays a central role in injection moulding quality. It affects how the material flows, fills the mould, solidifies or cures and performs once the finished component enters service.
Your manufacturer must control several temperatures throughout the process, including the barrel and nozzle settings, the actual melt and mould temperatures, the cooling-system temperature, and the component’s temperature at ejection.
This blog explores what that process looks like in practice, and the role temperature control plays in ensuring quality.
Temperature doesn’t just affect whether the material melts

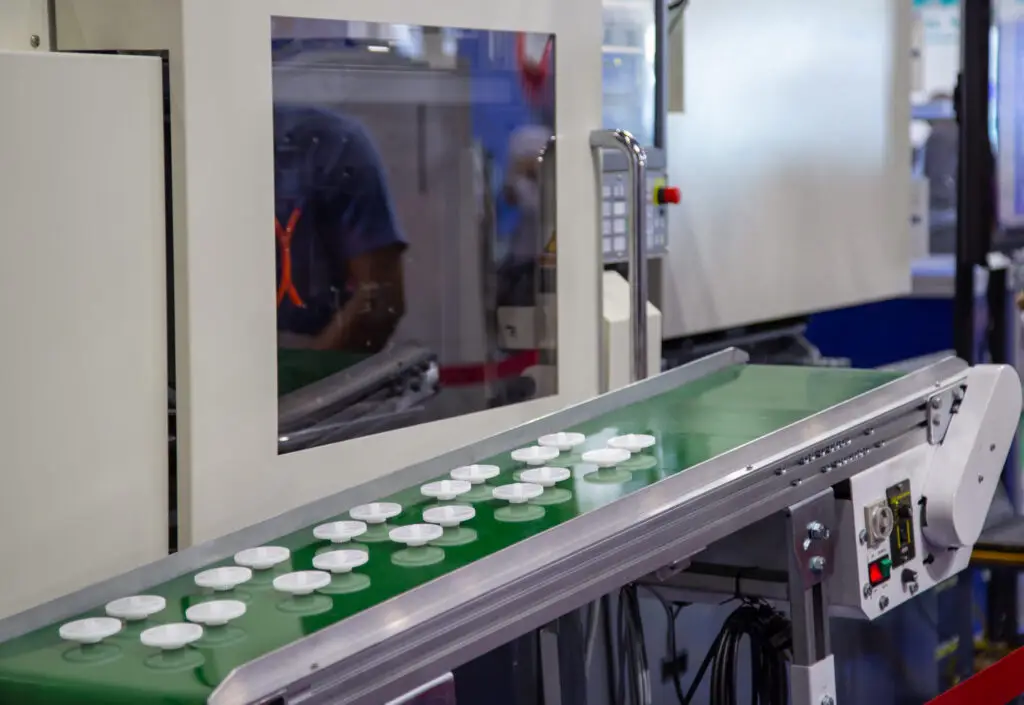

An injection moulding machine heats the raw material inside a barrel before injecting it into the mould. A rotating screw runs through the barrel, moving, compressing and mixing the material as it melts.
However, the barrel temperature settings don’t necessarily show the material’s exact temperature. As the screw rotates, friction and shear generate additional heat, so the actual melt temperature may differ from the barrel temperature shown on the machine controls.
Careful monitoring therefore helps keep the actual melt temperature within the material’s recommended processing window.
There isn’t a single correct temperature for every injection moulding project. The required conditions depend on the material, component geometry, wall thickness, flow-path length, and gate and runner design.
Controlling melt temperature
Melt temperature directly affects viscosity, or how easily the material flows. As the melt temperature rises, viscosity generally falls, making the material more fluid. This helps the melt flow through the nozzle, runner system and gates, and into the cavity.
However, it doesn’t mean the process should use the highest possible temperature. The appropriate melt temperature allows the cavity to fill without compromising the material’s stability or properties, while maintaining a practical cycle time.
If the melt is too cold, it may remain too viscous or begin to solidify before it fills the cavity. This can cause short shots, missing details, cold slugs and the need for higher injection pressure. Although increasing the pressure may improve filling in some cases, it can’t fully compensate for an unsuitable melt temperature and may introduce other defects.
If the melt is too hot, it may become excessively fluid and contribute to flash around the component’s edges. Excessive heat can also damage the polymer, particularly if it remains in the barrel for too long. Depending on the material, thermal degradation may cause discolouration, streaking, gas formation, deposits, odours or deterioration in mechanical properties.
Controlling mould temperature
In thermoplastic injection moulding, the melt begins losing heat as soon as it contacts the cavity walls. A thin frozen layer forms at the surface while the material in the centre continues to flow.
If the material cools too quickly, the flow front may stop before it reaches the end of the cavity. This is especially likely in components with thin walls, long flow paths, small gates or complex details.
Separate flow fronts may also meet without fully bonding. These meeting points, often called weld lines or knit lines, may be visible in the finished component and may create a mechanically weaker area.
Mould temperature also affects how accurately the material reproduces the cavity surface. If the mould is too cold, the outer layer may freeze prematurely, leading to uneven gloss, poor texture reproduction, visible flow patterns, surface streaks, more noticeable fibres or fillers, or reduced definition in fine details.
A warmer mould keeps the material mobile for longer, which can improve cavity filling and surface reproduction. However, it may also increase the required cooling time.
Managing cooling, shrinkage and ejection
Thermoplastic materials shrink as they cool. Because the outer surfaces cool before the internal areas, different sections may contract at different rates, particularly where the component has uneven wall thicknesses, heavy ribs, bosses or abrupt changes in section.
Uneven cooling can cause sink marks, warpage, twisting, internal stress, dimensional variation and poor flatness. Differences between the temperatures of the core and cavity sides can also make the component bend after ejection.
A well-designed cooling system helps remove heat evenly, with cooling channels positioned to follow the component’s geometry as closely as practical. The component must also remain in the mould until it’s stable enough to withstand ejection. If it leaves while the centre is still too hot or soft, ejector pins, slides or handling may deform it.
The cooling time must therefore be long enough to protect the component’s shape and dimensions without extending the production cycle unnecessarily.
Protecting dimensional stability and performance
Semi-crystalline thermoplastics, such as polyamide, polypropylene, PBT, POM and PPS, develop an ordered crystalline structure as they cool. Mould temperature affects how much of this structure forms during the moulding cycle.
A warmer mould can allow more crystallisation before ejection. This may increase initial mould shrinkage, but it can also reduce dimensional changes after the component leaves the mould. In contrast, a component produced in a cooler mould may initially appear closer to its target dimensions but continue changing as the material’s structure develops.
This is particularly important when the component requires tight tolerances, long-term dimensional stability, accurate mating surfaces, consistent mechanical properties and reliable performance at elevated temperatures.
The mould and process settings must therefore account for the material’s crystallisation behaviour.
Maintaining cycle-to-cycle repeatability
Injection moulding depends on repeating the same thermal conditions during every cycle. Even small temperature changes between shots can affect the finished component.
The process is generally most consistent once the machine and mould have reached a stable operating temperature. Start-ups, production pauses, inconsistent cycle times and changes in material residence time may disturb this balance, so the first components produced after an interruption may differ slightly from those made during steady production.
Controlling temperature in thermoset injection moulding
A thermoset moulding compound must remain fluid for long enough to travel through the injection unit and fill the cavity. It then cures through an irreversible chemical reaction inside a heated mould.
If the compound is exposed to too much heat or remains hot for too long before mould filling is complete, it may begin curing prematurely. The resulting loss of flow can cause incomplete filling and localised rough, dull or porous surfaces.
If, on the other hand, the mould is too cool or the curing time is too short, the component may not fully cure. This can affect its dimensions, surface condition, strength, heat resistance and long-term stability.
Once cured, thermosets can’t be remelted or reshaped. Incorrectly moulded material therefore can’t simply be melted down and returned to production as regrind, which makes accurate design, tooling, and process control especially important.
Achieving reliable injection moulding quality
At Talisman Group, we support thermoplastic and thermoset injection moulding from early component design and material selection through to tooling, sampling and ongoing production. With more than 85 years of moulding expertise and three UK manufacturing facilities, we combine practical technical support with press capabilities ranging from 25 to 1,100 tonnes. This allows us to produce everything from small precision components to mouldings exceeding one square metre.
Our programmable process controls and automated equipment support controlled moulding conditions throughout production, while our ISO 9001-certified quality management system supports inspection, traceability, corrective action and continual improvement.
Whether you’re developing a new component or improving an existing design, we’ll help you reduce manufacturing risks and produce repeatable parts that meet your performance, dimensional and commercial requirements. Contact our team to discuss your project.
